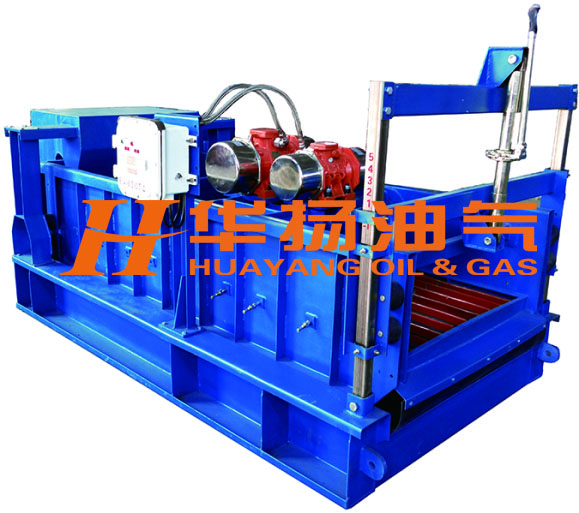

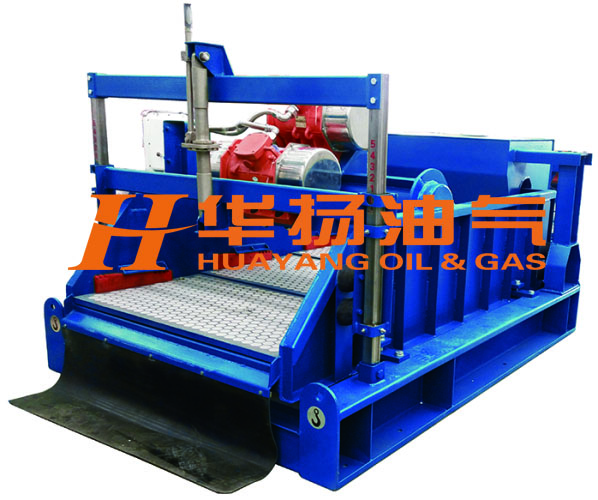

Shale shaker
source：西安華揚油氣設備有限公司 time：2017-11-10
| （Model） | HYPS703 | HYPS585-4 | HYZS703 | HYZS585 | HYZS752 |
|
Vibration Motion |
Balanced Elliptical Motion |
Linear Motion |
|||
|
Treatment Capacity |
130m³/h | 140m³/h | 120m³/h | 130m³/h | 60m³/h |
|
Motor Power |
1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 | 0.75KW×2 |
|
Screen Specs. |
（700×1250mm）×3 | （585×1165mm）×4 | （830×1050mm）×3 | （585×1165mm）×4 | （750×900mm）×2 |
|
Screen Area |
2.6m² | 2.7m² | 2.6m² | 2.7m² | 1.4m² |
|
Vibration Strength |
≤7.1G （可調） |
≤7.1G （可調） |
≤7.1G （可調） |
≤7.1G （可調） |
≤7.1G （可調） |
|
Double Amplitude |
7mm | 7mm | 6mm | 6mm | 5mm |
|
Deck Adjustment |
-1°～+5° | -1°～+5° | -1°～+5° | -1°～+5° | +3° |
|
Ex Standard |
ExdIIBt4 / IECEX / A-TEX | ||||
| Weight | 1630kg | 1618kg | 1620kg | 1600kg | 900kg |
|
Dimension |
2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm | 1835×1280×1200mm |
|
Remark |
Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. |
||||
Features and Benefits：
1.High manganese steel alloy for screen basket,with high strength,lengthen the service life of screen basket.
2.Adopted international brand vibration motor,Martin or OLI motor.
3.Hot treatment for screen basket,heavy anti-corrosive coating for surface,guarantee the service life of shale shaker.
4.High G force vibration strength(adjustable),can meet the separation of high viscosity and specific gravity drilling mud.
5.Fixation of plate tension and wedge are both available for screen.
6.Cofferdam and overhead for feeding hopper can make the mud buffering, equalized flow and then decrease the impact to screens.
7.。International brand Schneider or Siemens.
